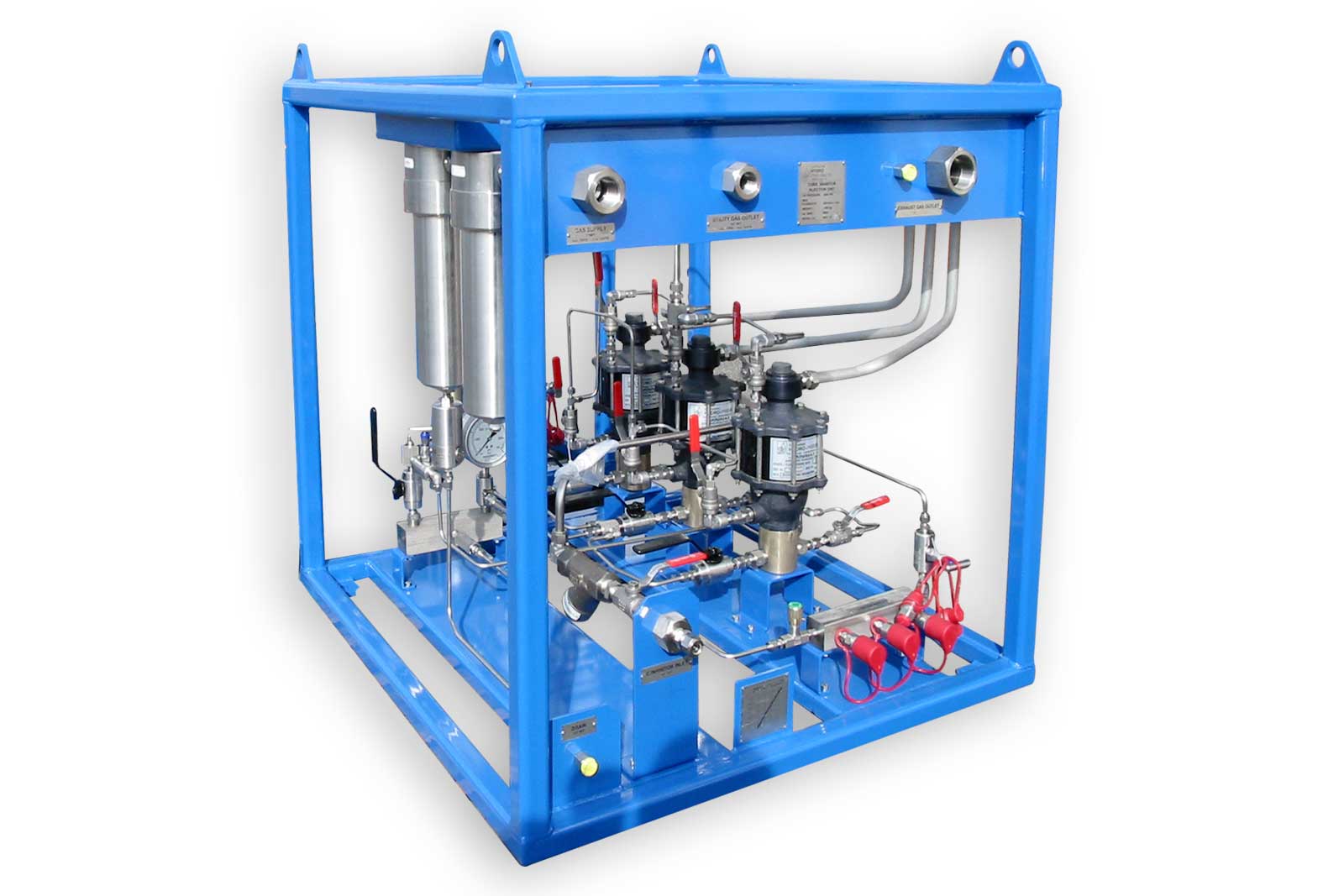

designed for chemical injection packages and portable pressure test units

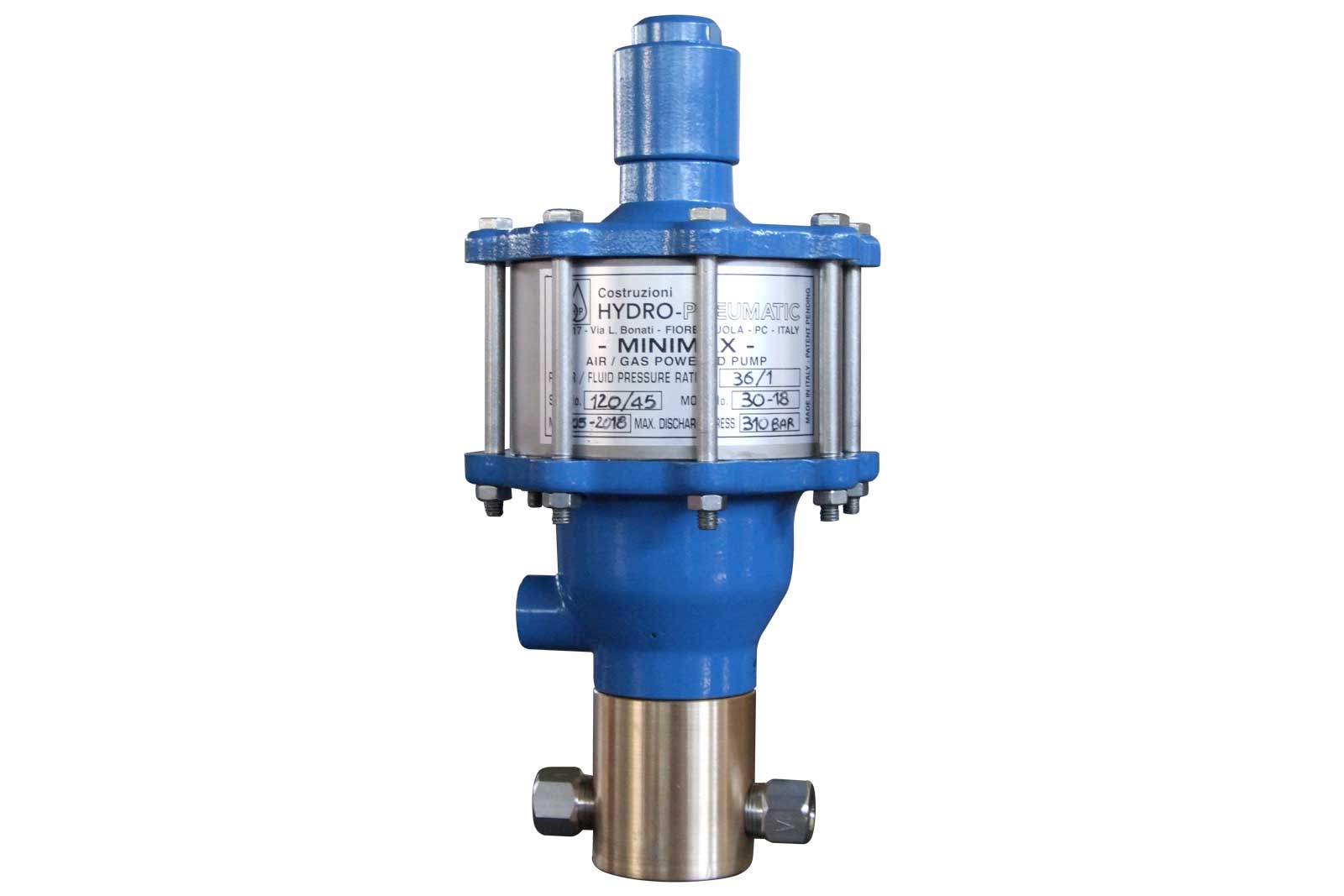

Specifically designed for injecting chemical, antifreeze and corrosion inhibitors, the Minimax injectors, available in two great series, are single acting air/gas driven, positive displacement pumps which operate at supply pressure ranging from 15 to 125 psi; both series are powered by a piston motor with spring return.
Wide regulation of flow rates is achieved by means of operating the speed control valve, while the exhaust port can be piped when gas is the power source. The construction is aimed to provide solutions, which are corrosion resistant.
Download the 120 45 data sheet
Features and Applications
- Minimax pumps are ideally suited for Chemical Injection and Metering Systems
- The comprehensive range allows for the construction of packaged systems and skids to meet the customer’s precise design requirements and specifications
- The Minimax pumps are intrinsically safe, suitable for extreme service, easy to install and reliable
- Pressures up to 30.000 PSI
